Valay Micro

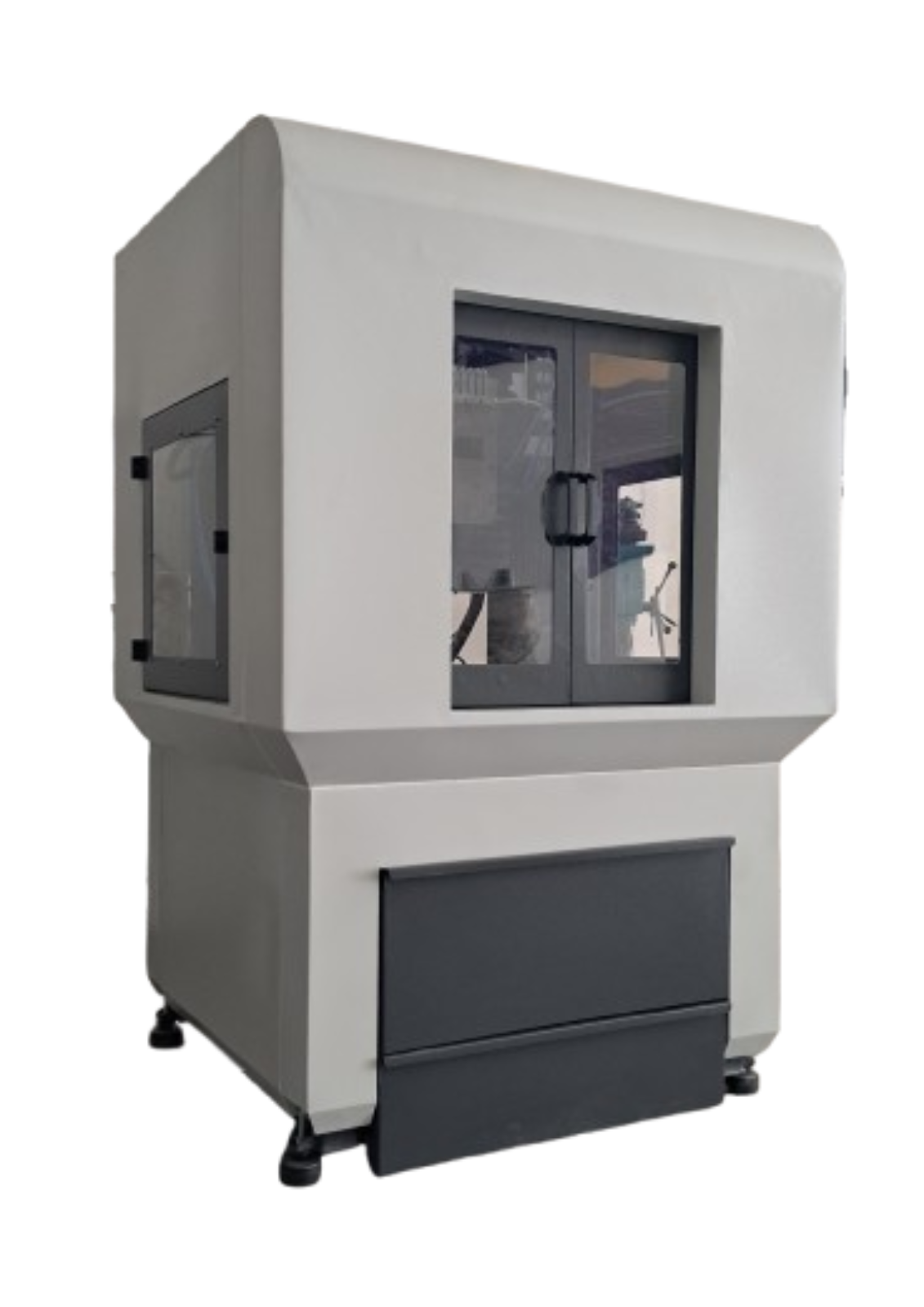

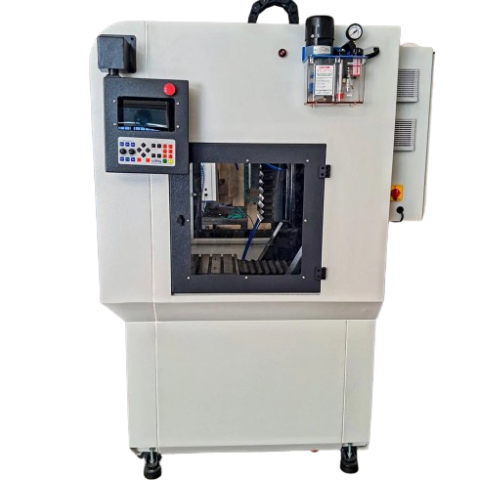

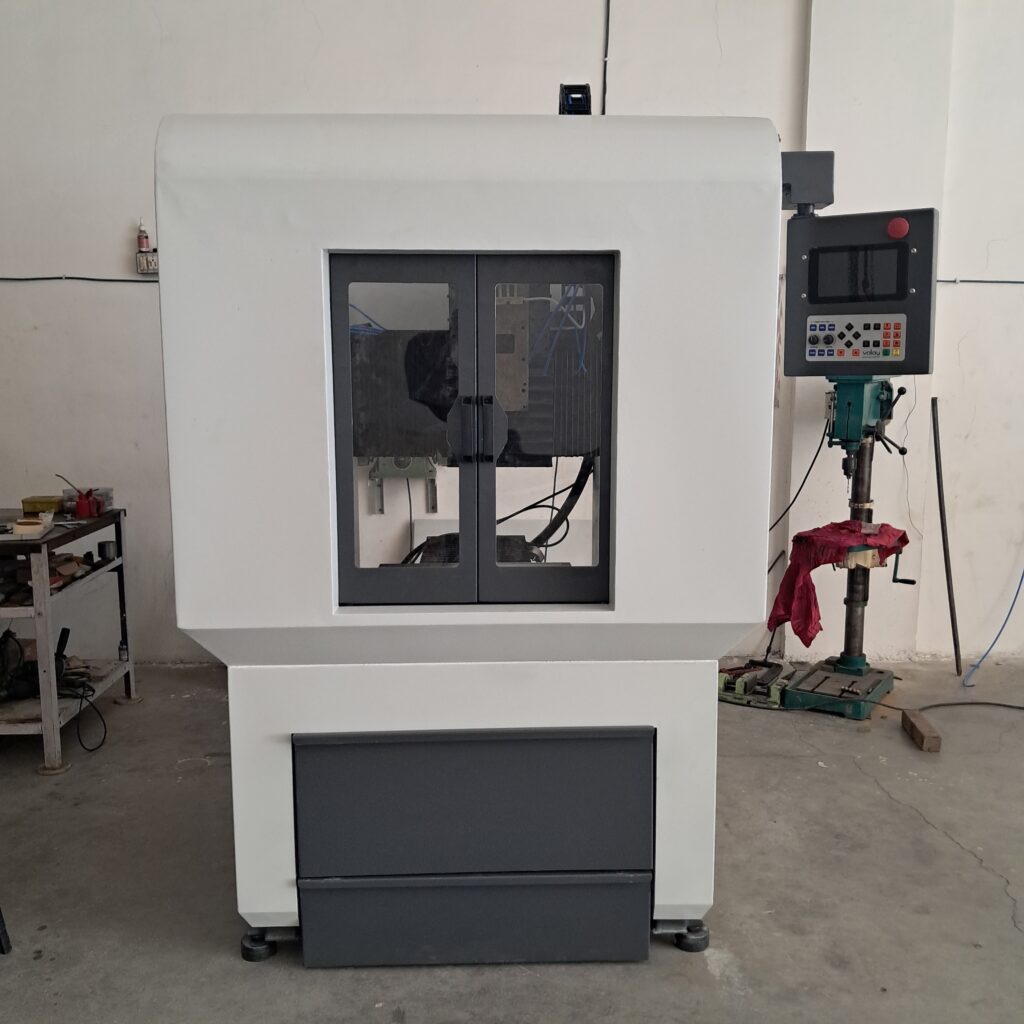

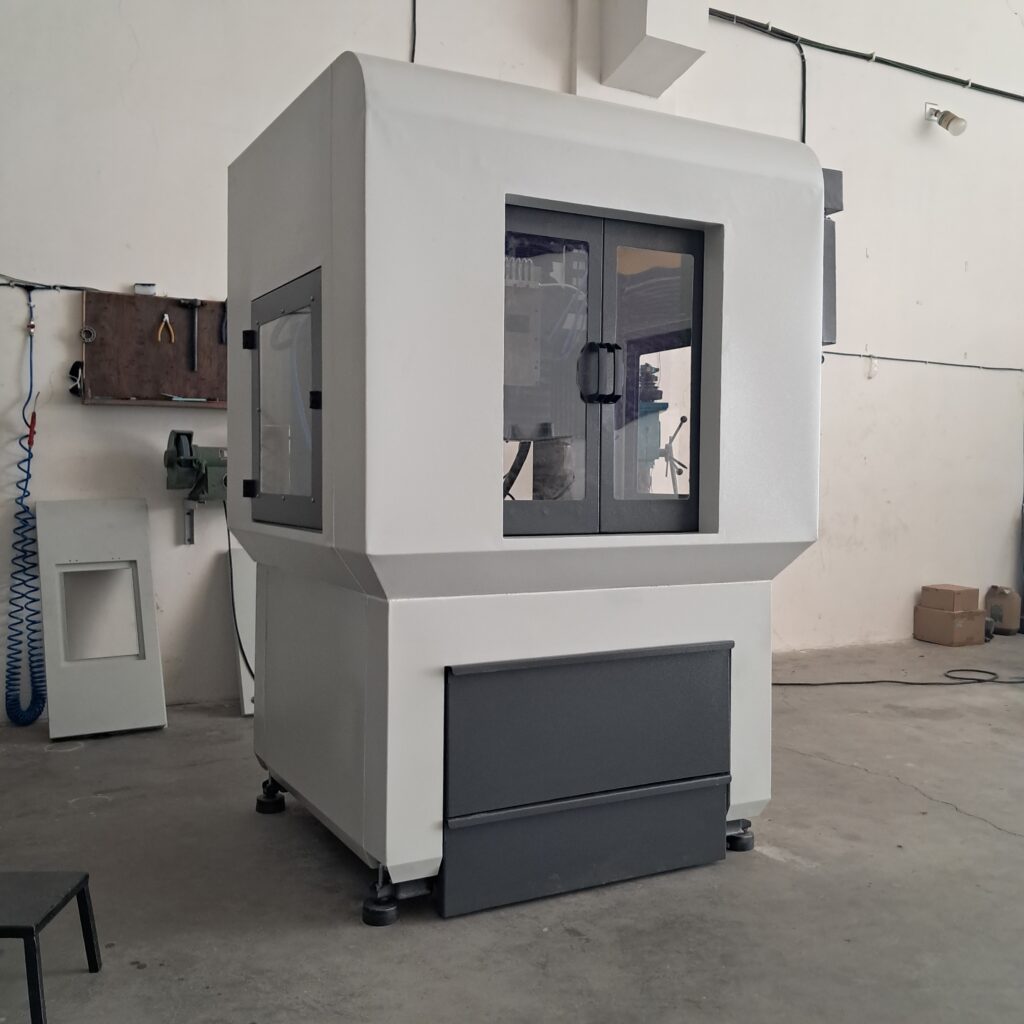

Valay Micro (Engraving): Compact Precision Engraving Machine for Detailed Craftsmanship The Valay Micro (Engraving) is a high-precision engraving machine designed for intricate and detailed craftsmanship.
With its compact design and advanced engraving technology, it delivers exceptional accuracy, making it ideal for a wide range of materials, including metals, plastics, and ceramics.
Perfect for industries such as jewelry, signage, and custom product design, the Valay Micro ensures consistent, professional-quality results while maximizing efficiency in a small workspace.
Key Features
In-house developed CNC control
system
User-friendly interface
Cost-effective with high ROI
ATC available
Up to 5-axis configuration
available
Program transfer by WiFi/Ethernet
Industry 4.0 ready
Low maintenance
Prompt Service Support
More Information Click – Valay Micro Machine Video
Valay micro Technical specification
Work table specifications
Worktable size: 500mm X 350mm
Machine travel: 450mm X 300mm X 250mm (X, Y and Z Respectively)
T slot Dimension: 25mm X 13mm X 9mm
Axis specifications
Axis types: AC servo
Cutting Velocity: 10000 mm/min
Rapid Velocity: 10000 mm/min
Spindle specifications
Spindle Type:
1. High torque spindle :
· 6000 RPM, 3.7KW, BT30 servo spindle (Standard)
· Tool taper: ER32 collet taper
· Max. Tool dia.: 20mm Dia.
2. High RPM spindle:
· 30000 RPM, 2.2KW, ISO20 ATC Water cooled electro spindle (Optional)
· 24000 RPM, 2.2KW, Manual tool change water cooled electro spindle (Optional)
Spindle specifications
Positioning: 0.010 mm
Repeatability: 0.010 mm
Controller specifications:
Controller: Valay v7.9, 5 Axis Simultaneous CNC control with 32GB program memory and Ethernet connected with HMI.
Program transfer: Via Wifi or Ethernet
Program File supported: .gcode, .mpf, .tap, .nc, .ngc, .fnc, .txt (All Cam software generated generic Gcode, Mcode supported)
Other Specifications
Machine Weight: 300 kg
Electric Rating: 5kva/Three phase or more
Coolant system: Flood coolant system
Lubrication system: Automatic
HMI Specifications:
Operating screen: 7” LCD touch screen color monitor
MOP: MOP keyboard
Remote control: wireless Keyboard pendant
ATC system (Optional):
No. of tools: 6
ATC type: Linear bed mounted ATC
Rotary table (Optional):
Servo based synchronous Rotary table available, contact us for details.
Standard Features
- Valay make 5 axis controller
- LM guide ways (roller type)
- Hiwin/THK/PMI make axis components
- Graded aluminium / mild steel / CI
- 7″ touch screen
- Machine operating panel
- Wireless Pendant
Optional Features
- Z probe
- 3D probe
- Automatic tool change
- 4/5th axis rotary table
- Spindle Chiller
APPLICATIONS
Small metal parts machining
Aluminium patterns Dies/Moulds Automobile parts
All type of dies
5.S. handle groove cutting
Chocolate and biscuit mould
Keyway machining
Vacuum forming dies
Rubber moulds
Wooden patterns
Mobile Cover Dies
Brass parts machining
Machining of all kind of engineering plastics
Engraving (Jewellery, Letter work etc.)
Watch cases
Precision electrodes
Decorative hardware items
Acetate Frame
Toys die
