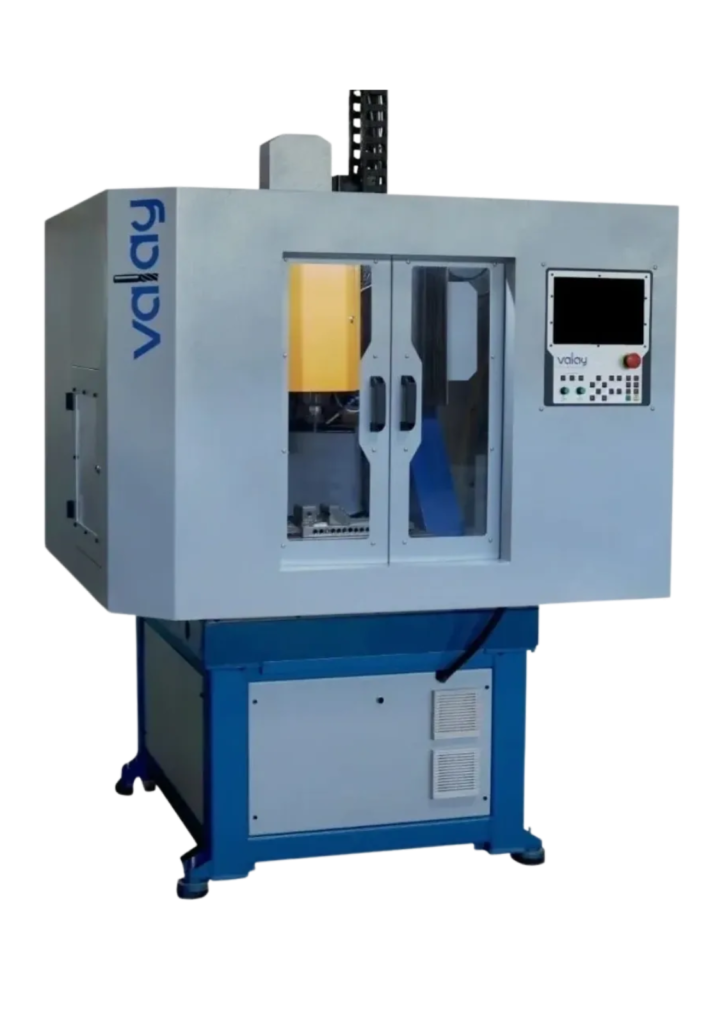

Valay Mini VMC: Precision Redefined in a Compact Machine for Modern Machining Need
The Valay Mini VMC is a compact and versatile Vertical
Machining Center designed for precision machining in limited spaces.
It offers exceptional accuracy and efficiency, making it
ideal for milling, drilling, and tapping tasks across various materials.
With its advanced CNC technology, the Valay Mini VMC ensures
seamless operation and high-quality output, catering to the needs of small
workshops and industries requiring detailed and intricate machining solutions.
Key Features
In-house developed CNC control system
User-friendly interface
Cost-effective with high ROI
ATC available
Up to 5-axis configuration available
Program transfer by WiFi/Ethernet
Industry 4.0 ready
Low maintenance
Prompt service support
More Information Click – Valay Mini Machine Video
Valay Mini Technical specification
Work table specifications
Worktable size: 650mm X 500mm
Machine travel: 600mm X 450mm X 300mm (X, Y and Z Respectively)
T slot Dimension: 25mm X 13mm X 9mm
Axis specifications
Axis types: AC servo
Cutting Velocity: 10000 mm/min
Rapid Velocity: 10000 mm/min
Spindle specifications
Spindle Type:
1. High torque spindle :
· 6000 RPM, 3.7KW, BT30 servo spindle (Standard)
· Tool taper: ER32 collet taper
· Max. Tool dia.: 20mm Dia.
2. High RPM spindle:
· 30000 RPM, 2.2KW, ISO20 ATC Water cooled electro spindle (Optional)
· 24000 RPM, 2.2KW, Manual tool change water cooled electro spindle (Optional)
Spindle specifications
Positioning: 0.010 mm
Repeatability: 0.010 mm
Controller specifications:
Controller: Valay v7.9, 5 Axis Simultaneous CNC control with 32GB program memory and Ethernet connected with HMI.
Program transfer: Via Wifi or Ethernet
Program File supported: .gcode, .mpf, .tap, .nc, .ngc, .fnc, .txt (All Cam software generated generic Gcode, Mcode supported)
Other Specifications
Machine Weight: 300 kg
Electric Rating: 5 kva/Three phase or more
Coolant system: Flood coolant system

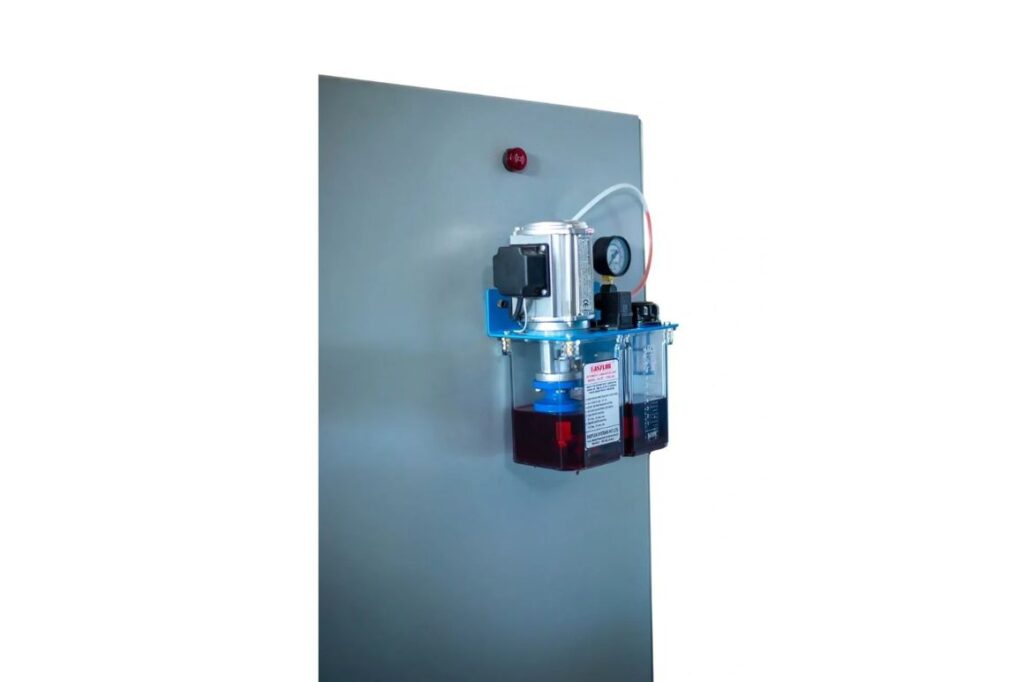

Lubrication system: Automatic
HMI Specifications:
Operating screen: 7” LCD touch screen color monitor
MOP: MOP keyboard
Remote control: wireless Keyboard pendant
ATC system (Optional):
No. of tools: 6
ATC type: Linear bed mounted ATC
Rotary table (Optional):
Servo based synchronous Rotary table available, contact us for details.
Standard Features
- Valay make 5 axis controller
- LM guide ways (roller type)
- Hiwin/THK/PMI make axis components
- Graded aluminium / mild steel / CI
- 7″ touch screen
- Machine operating panel
- Wireless Pendant
Optional Features
- Z probe
- 3D probe
- Automatic tool change
- 4/5th axis rotary table
- Spindle Chiller
APPLICATION:
Wooden patterns
Ceramic tiles die
Brass parts machining
Robust double column structure
Suitable for Engineering/teaching institutes
SS. handle groove cutting
Small metal parts machining
Aluminium patterns Dies/Moulds Automobile parts
All type of dies
Chocolate and biscuit mould
Keyway machining
Vacuum forming dies
Rubber mould
Machining of all kind of engineering plastics
Aluminium handles
Toys die
Decorative hardware items
