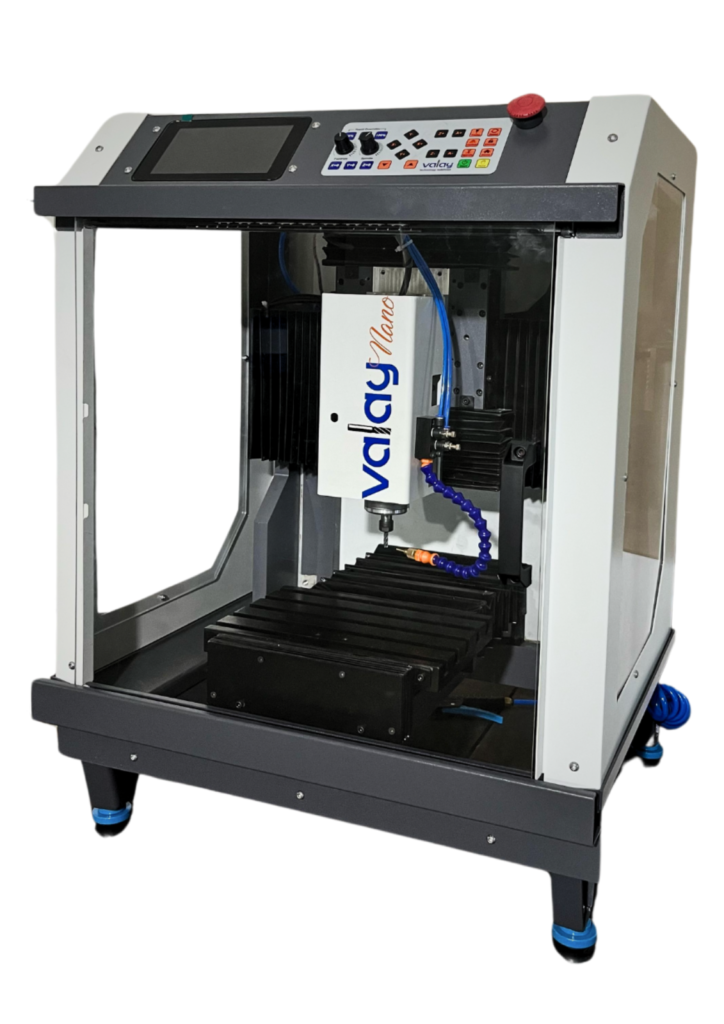

Valay Nano (Engraving)

Ultra-Compact Precision Engraving for Intricate Design The Valay Nano (Engraving) is a highly compact and versatile engraving machine tailored for ultra-fine detailing and precision tasks.


 Its advanced technology ensures accuracy and consistency, making it ideal for engraving intricate designs on various materials like metal, plastic, and ceramics.


Designed for efficiency in limited spaces, the Valay Nano is perfect for small-scale industries and artisans seeking professional-grade results.


Key Features

In-house developed CNC control system

User-friendly interface

Cost-effective with high ROI

ATC available

Up to 5-axis configuration available

Program transfer by WiFi/Ethernet

Industry 4.0 ready

Low maintenance

Prompt service support

      More Information Click – Valay Nano Machine Video


Valay nano Technical specification

 Work table specifications

Worktable size: 300mm X 200mm

Machine travel: 300mm X 200mm X 150mm (X, Y and Z Respectively)

T slot Dimension: 20mm X 13mm X 9mm

Axis specifications

Axis types: AC servo

Cutting Velocity: 10000 mm/min

Rapid Velocity: 10000 mm/min

Spindle specifications

Spindle Type:

               Manual Tool change: 24000 RPM, 0.8KW, Air cooled  Electro spindle (Standard)

               Automatic Tool Change: 60000 Rpm, 1.8KW, Water cooled Electro Spindle (Optional)

                                                              ISO10 Taper

Max. Tool dia.: 6mm Dia. (ER11 collet taper)

Spindle specifications

Positioning:  0.010 mm

Repeatability: 0.010 mm

Controller specifications:

Controller: Valay v7.9, 5 Axis Simultaneous CNC control with 32GB program memory and Ethernet connected with HMI.

Program transfer: Via Wifi or Ethernet

Program File supported: .gcode, .mpf, .tap, .nc, .ngc, .fnc, .txt (All Cam software generated generic Gcode, Mcode supported)



Other Specifications

Machine Weight: 150 kg

Electric Rating: 2kva/single phase

Coolant system: Mist coolant system

Lubrication system: Manual

HMI Specifications:

Operating screen: 7” LCD touch screen color monitor

MOP: MOP keyboard

Remote control: wireless Keyboard pendant

ATC system (Optional):

No. of tools: 6

ATC type: Linear bed mounted ATC

Rotary table (Optional):

Servo based synchronous Rotary table available, contact us for details.



Standard Features
  • Valay make 5 axis controller
  • LM guide ways (roller type)
  • Hiwin/THK/PMI make axis components
  • Graded aluminium / mild steel / CI
  • 7″ touch screen
  • Machine operating panel
  • Wireless Pendant
Optional Features
  • Z probe
  • 3D probe
  • Automatic tool change
  • 4/5th axis rotary table
  • Spindle Chiller


APPLICATIONS


Small metal parts machining

Machining of all kind of engineering plastics

Engraving (Jewellery, Letter work etc.)

Decorative hardware items

Precision electrodes

Acetate Frame

Rubber moulds

Watch cases

Mobile Cover Dies

Brass Parts Machinin
